Water Heater Installation Guide

Are you struggling to get your water heater set up correctly? Water heater installation is a key task that requires attention to detail. This guide will walk you through every step, simplifying the process and ensuring your home has hot water running smoothly.

Get ready to learn everything you need!

Essential Tools and Supplies for Water Heater Installation

Installing a water heater requires precise measurements and the tightening of connections. Essential tools and supplies make this process smoother and safer.

  1. Tape measure: You need this to ensure your new water heater fits in the designated space and to measure distances for pipes and wires.
  2. Wrenches are crucial for loosening old connections and securing new ones, especially when working with water pipes and electrical fittings.
  3. Screwdrivers: These help attach brackets, open the heater’s cover, and secure electrical connections within the junction box.
  4. Voltage detector: Before starting, you must ensure no live wires are present; a voltage detector keeps you safe from electric shocks.
  5. Dielectric connectors: To prevent corrosion caused by connecting dissimilar metals, dielectric connectors are used between copper pipes and the steel tank.
  6. Pipe cutter: A pipe cutter is more efficient than a hacksaw for a clean cut on copper tubing or plastic pipes.
  7. Plumbers tape: This helps seal threaded joints on pipes, reducing the chance of leaks at connection points.
  8. Soldering flux, solder fittings, and lead-free solder are necessary for securely joining copper pipes if your installation involves soldered fittings.
  9. T&P valve (Temperature & Pressure Relief Valve): A critical safety feature that releases pressure if it gets too high inside the water heater.
  10. Multi-meter: This checks electrical connections, including continuity tests to ensure the system is safely grounded using a ground wire.
  11. Electrical wiring supplies such as conduit, junction box, wire connectors, and outlet plugs are essential for making safe electrical connections following national electric code standards.
  12. Drain pan: Installing under your water heater catches any leaks or drips, preventing damage to your floor.
  13. Expansion tank: Necessary if your home’s water system is closed, preventing pressure build-ups when heating water.

Preparing for Installation

To kick off the installation, one must ensure all power leading to the existing unit is safely switched off at the main circuit breaker. After cutting off electricity, it’s time to remove any water and detach old connections, clearing the way for your new water heater.

Disconnecting Electricity

Before starting the water heater installation, it is critical to disconnect the electricity. This step ensures safety for anyone working on the project. First, locate your circuit breaker box and find the specific breaker that supplies power to your current water heater.

You must switch off this breaker to cut off the electrical supply. A non-contact voltage tester can help you confirm that there’s no live power running to the unit.

Next, carefully remove any electrical wires connected to the old water heater. Tools like wire nuts may be necessary to manage and cap off wires once they are disconnected safely. Following regulations regarding electrical circuits specifically designed for water heaters is essential, ensuring everything complies with safety standards.

Doing so, you prepare a safe environment for installing your new hot-water system without risking electric shocks or other hazards.

Draining the Old Tank

First, you must turn off the power to ensure safety during draining. This means switching off the circuit breaker for an electric water heater or closing the gas valve for gas-powered ones.

Then, let hot water run from a nearby tap, which helps lower the temperature inside the tank and makes it safer to handle.

Next, locate and open the water heater’s drain valve found at the tank’s base. Connect a hose to this valve and direct its other end to a suitable drainage point where hot water can safely discharge without causing damage or injury.

Opening this valve allows all remaining hot water and sediment built up over time to flow from the tank. It is important to remove this sediment as it affects the efficiency and longevity of your new installation.

Remembering these steps ensures a smooth transition towards setting up your new water heating system.

Disconnecting Plumbing

First, to disconnect the plumbing, ensure all pipes are cool to the touch. This precaution prevents burns or injuries from hot water remaining in the system. Gently detach the inlet pipes using a pipe wrench and pliers, allowing them time to drain efficiently.

Handling this step carefully is essential to avoid damaging other piped connections or nearby electrical wirings.

Lift and angle the pipes upward and towards you as you remove them, preventing undue stress on surrounding fittings. This method helps manage pre-existing plumbing issues that could positively affect the new heater’s installation process.

Ensure each fitting is loosened without force, preserving its integrity for future use or adjustment.

Removal and Disposal of Old Water Heater

Removing your old water heater efficiently and safely is crucial before installing a new one. Disposing of it responsibly helps protect the environment and complies with local regulations.

  1. Switch off power: Ensure all electricity is disconnected to prevent accidents. Use a test pen to confirm there’s no power.
  2. Drain the tank: Connect a garden hose to the drain valve at the bottom and lead it outside or into a drain to empty the tank completely.
  3. Disconnect plumbing: Use a tubing cutter for precise cuts on pipework and detach any fittings connected to the tank.
  4. Prepare for lifting: Water heaters are heavy, so get help or use a dolly to avoid injury when moving it.
  5. Check local guidelines: Refer to regulations on disposing of electrical appliances in your area, as these can vary widely.
  6. Choose disposal method: Decide if you prefer recycling, donating or using junk removal services based on what’s available locally.
  7. Contact removal service: U.S. Water Heating Solutions and similar companies offer removal and disposal services, often included in their installation package.
  8. Recycle if possible: Old units can often be recycled, reducing waste and sometimes even earning you a small return for scrap metals.

Installing the New Water Heater

Carefully position the new water heater where the old one stood. Ensure all connections, including plumbing and electrical wiring, are properly secured and aligned.

Positioning and Securing the Heater

Locate the wall studs near your heater’s strap measurements. Once found, drill pilot holes to ensure you can securely fasten the water heater in place. This step is crucial for stability and safety, preventing unwanted movement that could damage connections or cause leaks.

Next, correctly align the water heater with plumbing lines; this might require precisely soldering pipes and fitting valves. Use compression fittings and dielectric unions to ensure a tight seal between different materials, reducing the risk of corrosion over time.

Ensure all connections are snug and properly aligned before moving on to further steps in the installation process.

Preparing the Plumbing Lines

Before installing the new water heater, ensure your plumbing lines are ready for a smooth transition. Check the pipes for any signs of leaks or corrosion and replace them if necessary to avoid potential hazards.

Use pipe fittings like elbows and reducers to correctly align the plumbing with the water heater’s inlet and outlet ports. Careful preparation here can prevent issues like water leaking in your basement or bathroom later.

Next, install pressure-reducing valves if your home’s water pressure is too high, as this can damage both the heaters and connected appliances like washing machines and dishwashers.

For homes with solar water heating or those requiring thermostatic mixing valves to control temperature to taps more precisely—such as in kitchen sinks or bathrooms—ensure these components are integrated properly into your system design.

This step is crucial for balancing safety concerns, like scalding risks, with the efficient provision of potable water throughout your home.

Connecting Electrical Wiring

Connecting electrical wiring to a new water heater requires precision and knowledge. You must ensure the tank is completely full before making any connections, as this safeguards the heating elements from damage.

Use the designated circuit for your water heater installation to prevent errors in the colour coding of cables.

Understand electric water heater wiring basics aids in evaluating an existing setup or getting ready for a fresh installation. Always match wires correctly and secure them with appropriate fuses or circuit breakers, like double pole moulded cases or miniature circuit breakers, to ensure safety and functionality.

This step is crucial for efficiently operating your heating system and prevents potential electrical hazards.

Final Steps in Water Heater Installation

Once the new water heater is in place, it’s time to get everything hooked up and working smoothly. You’ll connect the supply lines, switch on the water, and ensure every tap in your home receives hot water as it should.

Attaching the Supply Lines & Turning On the Water

First, connect the hot water supply by screwing a 3/4″ NPT threaded adapter into the outlet marked “H” for hot on your water heater. Use solid or flexible copper pipes as the manufacturer recommends linking this adapter to your plumbing system.

This ensures that heated water flows correctly to fixtures like your kitchen sink and automatic dishwasher.

Next, open the main tap slowly to allow water to fill the tank. Keep an eye on connections for any leaks while doing this. As the tank fills, air trapped in the lines escapes through opened faucets around your home, such as those at sinks and showers.

It is crucial not to rush this step; letting air out gradually prevents potential damage from pressure buildup within your new installation.

Setting up the T&P Discharge Pipe

Installing the T&P discharge pipe is crucial in setting up your water heater. Ensure the pipe has an internal diameter of at least 3/4 inches and slopes downwards to ensure proper drainage, as most manufacturers and local plumbing codes recommend.

This arrangement helps prevent any buildup of pressure within the tank.

Attach one end of this pipe securely to the temperature & pressure (T&P) relief valve on your water heater. The other end must extend within 6 inches of the floor, preventing potential scalding hazards while accommodating complete drainage as required.

Using materials like cross-linked polyethene or PVC pipe ensures durability and compliance with safety standards for these installations.

Turning on Power & Bleeding the Hot Water Lines

Once the water heater is securely in place and all plumbing connections are tight, it’s time to focus on the power supply. Carefully connect the power cable, following manufacturers’ guidelines and electrical installation standards.

This step is crucial; turning on the power before filling the tank can harm electric heating elements by causing them to dry fire. Always ensure the tank gets fully filled with water before flicking that switch.

Bleeding hot water lines also rank high in importance during installation. Opening a nearby hot tap allows air trapped within the pipes and heater to escape, ensuring a smooth water flow.

This procedure guarantees your system works efficiently without any hiccups right from the start. It prevents air from blocking water movement, leading to uneven heating or even damage if left unchecked over time.

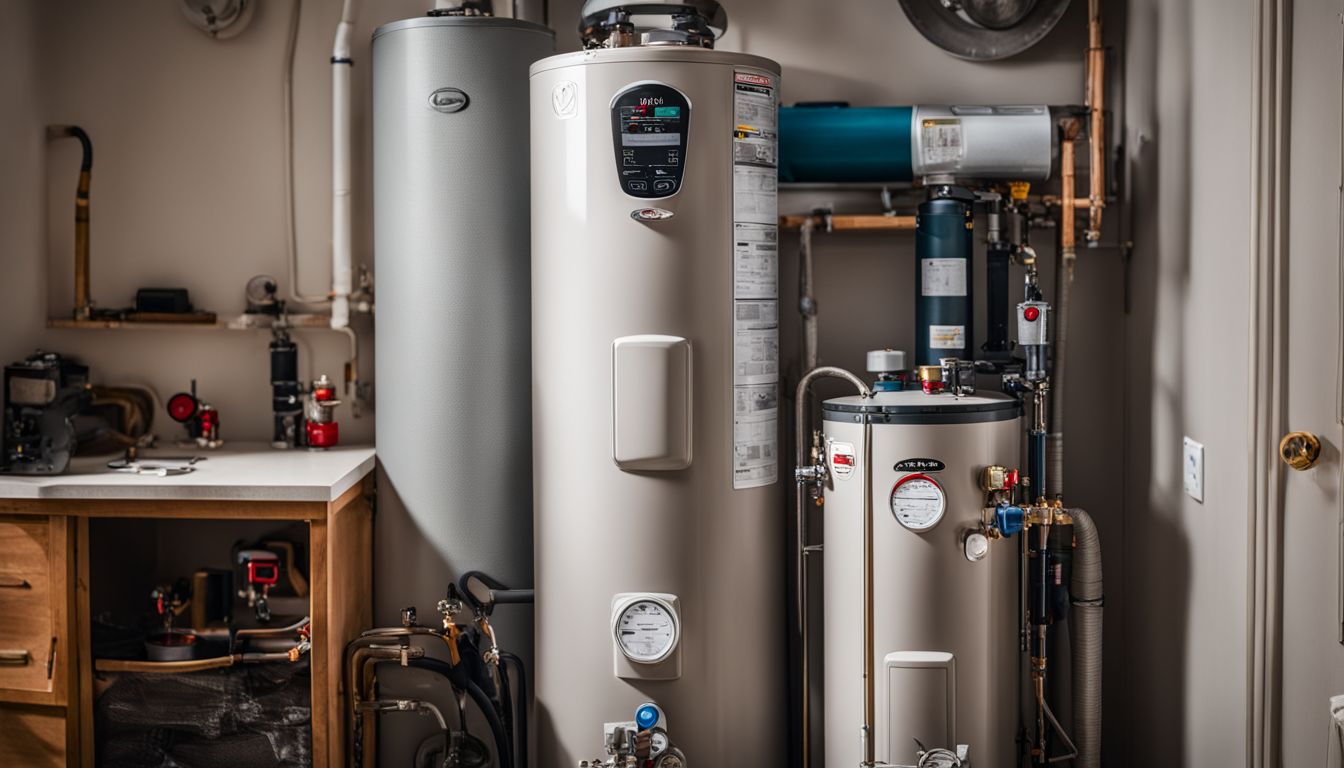

Checking for Leaks and Adjusting Temperature

Regular checks for leaks in your water heater can save you from unexpected troubles. Common spots to inspect include where the water enters and exits at the top, around the T&P relief valve, and near the drain valve.

Signs of moisture or drips in these areas signal a need for immediate action to prevent further damage.

Adjusting the temperature demands safety first; always turn off the power before proceeding. Remove the access panel to find the thermostat dial. Consult your owner’s manual to learn about maximum temperatures and proper adjustment procedures.

A correct setting ensures efficient operation and avoids scalding risks, contributing positively towards energy conservation and extending the lifespan of both plumbed appliances like automatic dishwashers and your water heater itself.

DIY or Professional Water Heater Setup: Making the Right Choice

Deciding between DIY or professional water heater installation requires careful consideration. Here are the key points in an organised format.



Aspect DIY Installation Professional Installation
Experience Needed High confidence in skills and ability to follow manufacturer guidelines. Handled by experienced professionals familiar with correct installation processes.
Cost Potentially saves money but involves risks. More costly upfront but ensures correct and safe installation.
Risks Possible mistakes during installation can lead to future problems. Minimises risks as professionals are accountable for the installation.
Time Commitment Requires significant time investment from the homeowner. Less time-consuming for the homeowner as professionals handle the setup.
Benefits A rewarding experience for those with the necessary skills. Peace of mind through expert advice and seamless installation.
Considerations Must be aware of the installation process’s potential pitfalls. Ideal for those wanting to avoid mistakes and ensure a hassle-free process.

Conclusion

Water heater installation marks a significant step towards home improvement and energy efficiency. By following a detailed guide, homeowners can confidently tackle the task, whether going the DIY route or hiring professionals.

Key factors like choosing the right tools, preparing properly, and ensuring safety measures pave the way for a successful setup. Remember to consult expert advice when in doubt to ensure your water heater serves you well for years.

FAQs

1. What do I need to connect my water heater?

You will need a socket, fittings, and a spigot or tube for the connections. Make sure you have everything before starting.

2. How do I prepare the pipes for installation?

Clean the ends of your pipes with soldering paste before attaching them to ensure a secure fit. This step is crucial for preventing leaks.

3. Do I need an expansion tank for my water heater?

Yes, installing an expansion tank helps manage pressure in your water heating system and can prevent damage to your pipes.

4. What type of pipe should I use for the cold water supply?

For cold water supply, polyvinyl chloride (PVC) pipe is recommended due to its durability and resistance to corrosion.
